Annotations are a built-in PDF Tool geared towards Participants (Meeting Attendees) to mark up PDFs without having to download or plugin anything into their desktop browsers or tablets.  The Annotation tool is currently available to be accessed on attachments within the Agenda at this current time only.

How to Annotate

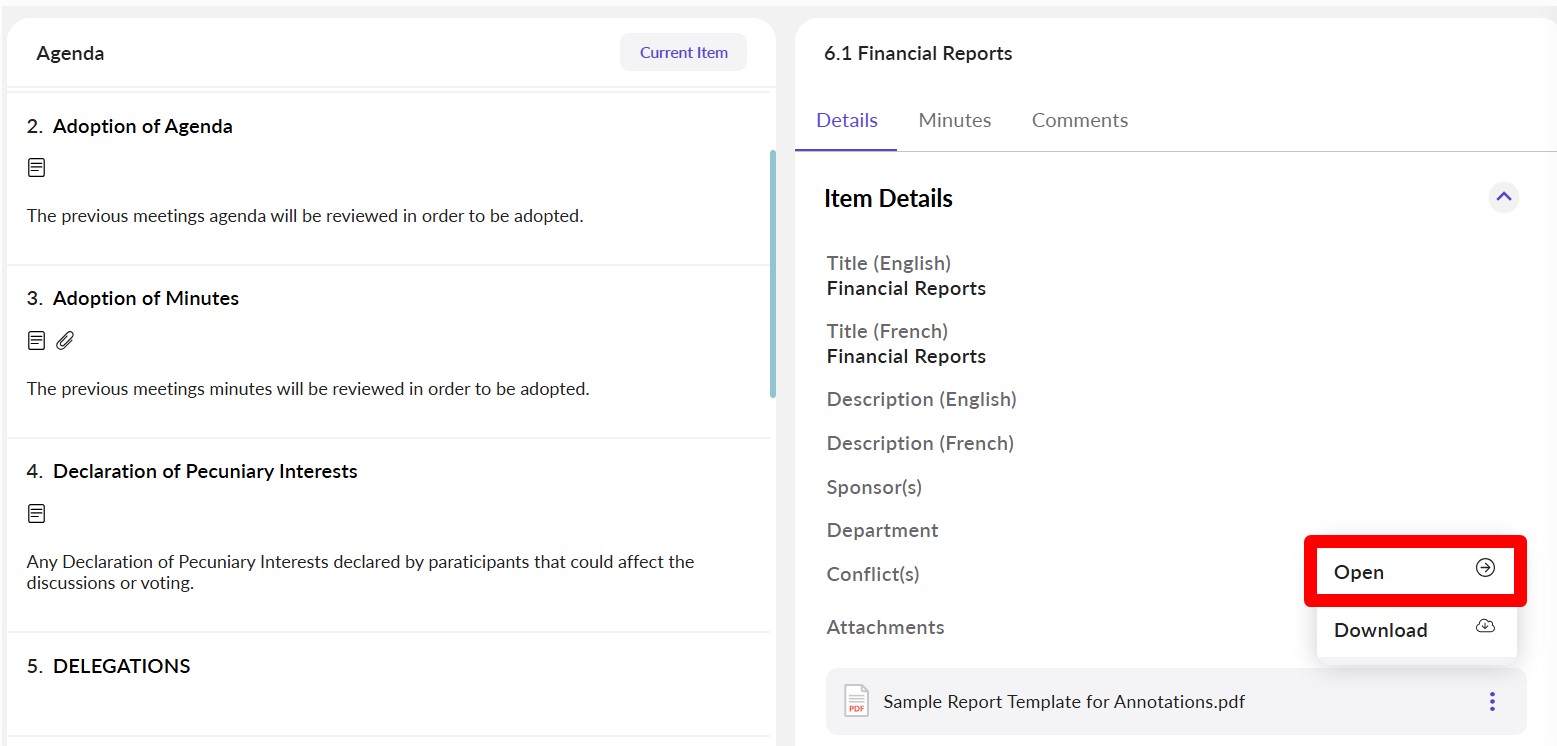

Annotations can be captured on the attachments contained with the Meeting. To begin annotating, locate the attachment and select Open from the options menu to begin annotating with eScribe. If a user selects Download they will not have access to the annotation toolbar.

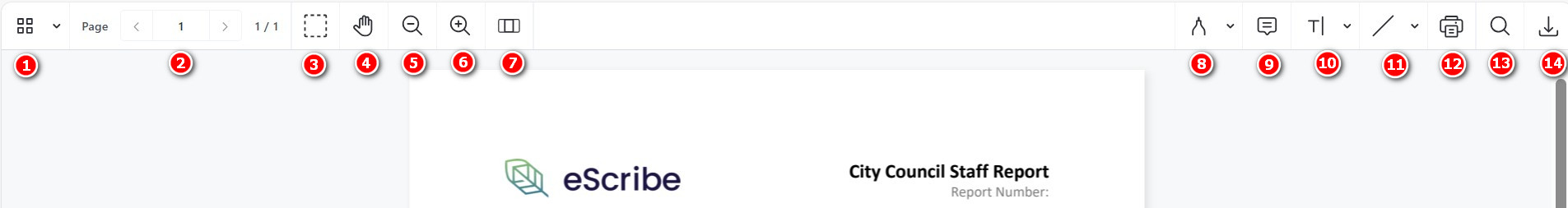

To start annotating attachments during the meeting, users can utilize the top navigation toolbar as illustrated below. The primary annotation tools are located in zones 8, 9, 10, and 11, while the other zones contain basic tools. The table below provides a description of each tool and how to best apply it to the documentation. Annotations are saved frequently (2 seconds) to ensure data is secure within eScribe.

Zone	Icon	Feature
1 -  Thumbnail		Drop down menu offers the following: Thumbnails - Displays documents with Annotations Annotations - Displays a list of Annotations used
2 - Page		Allows the user to jump to a specific page or use the arrows to move across pages.
3 -  Select Multiple Annotations		Allows multiple annotations to be deleted at one time from within the document.
4 - Pan Mode		Pan Mode allows the user to move the view to another location without changing the magnification. Users on tablet may find this helpful if they have a smaller screen size.
5 -  Zoom Out		Allows a user the ability to reduce the magnification of an image or document.
6 - Zoom In		Allows a user the ability to increase the magnification of an image or document.
7 - Fit Page		Zooms into to fit the width of the screen
Drawing		Drop down menu offers the following: Drawing  - Free form tool to draw Freeform Highlight - Text Highlighter - Eraser (used to delete Drawing and Free form highlight Annotations only )
Note		Tool used to create a customizable Note in various shapes and colors.
Text & Callout		Drop down menu offers the following: Text - allows the user to enter text on the document Callout  - allows the user to add arrows to draw attention
Shapes Tool Toggle Menu		Drop down menu offers the following: Line Arrow Rectangle Ellipse Polygon Cloudy Polygon Polyline
Print		Allows the user to print the document with the annotations.
Search Document		Allows the user to search content within the documents.
Export		Exports the PDF document with markups.
Deleting Single Annotation		To delete a single annotation, click on the desired annotation and click the Trash Icon.
